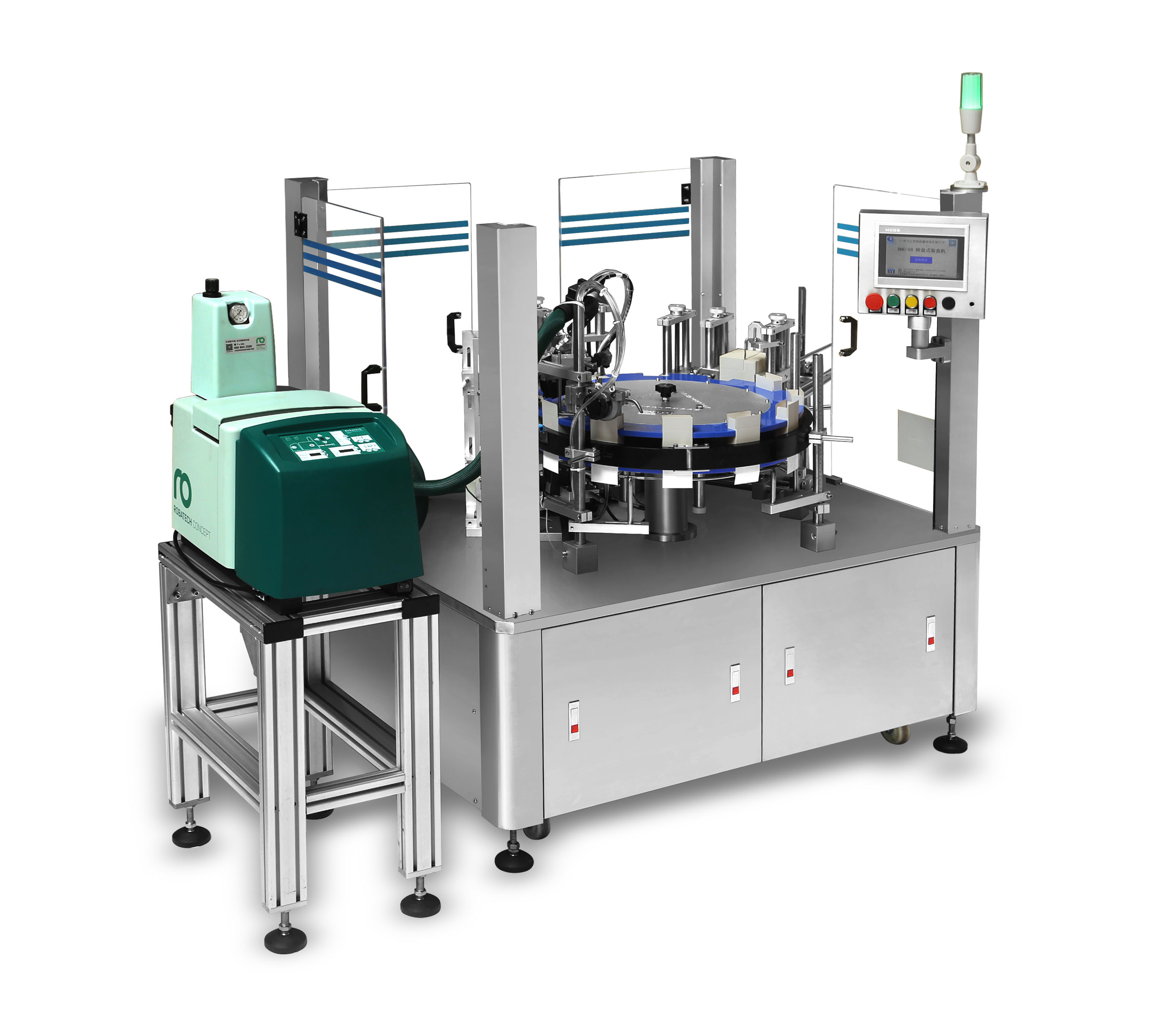

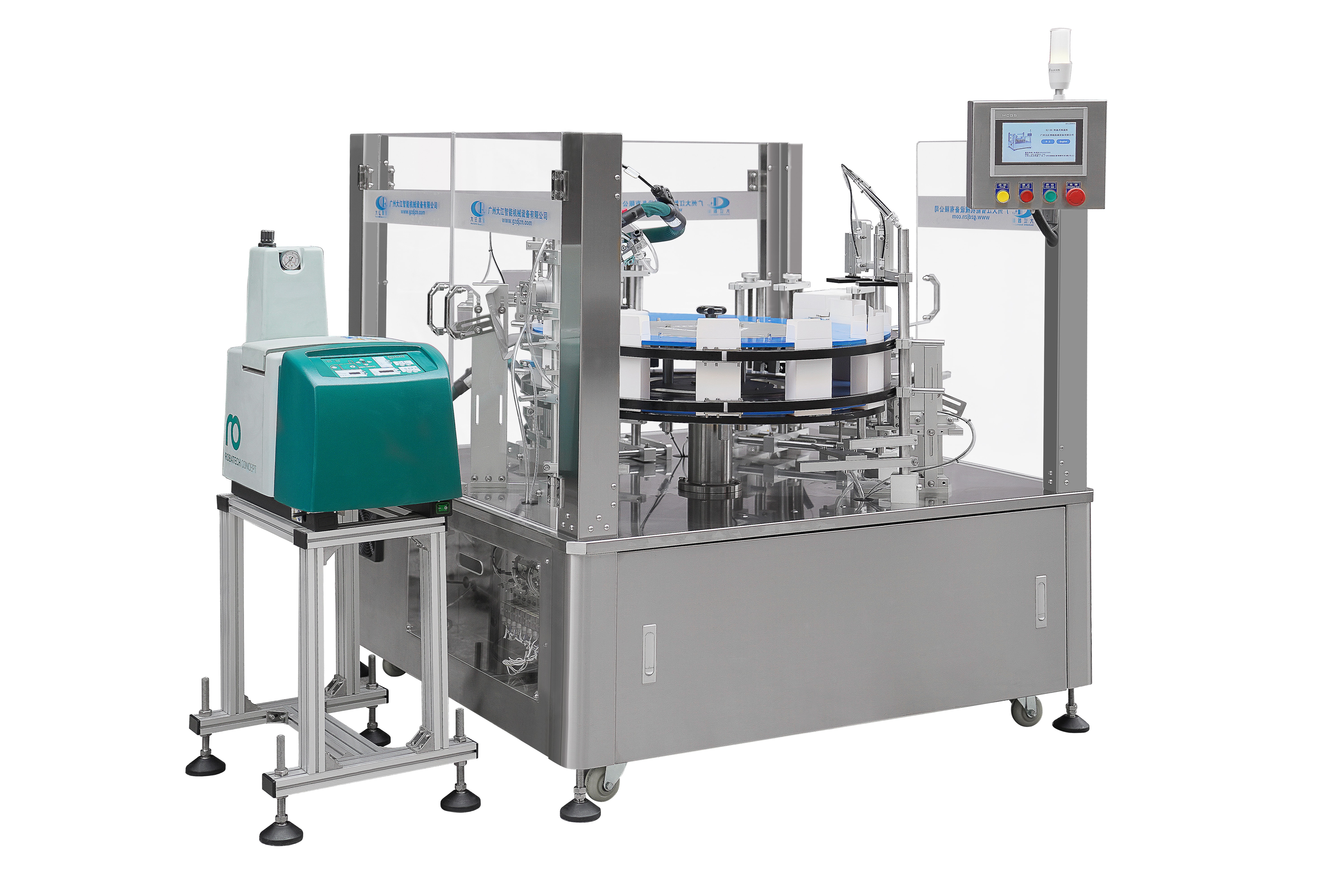

DJ-50多功能立式裝盒機

DJ-50 multifunctional vertical box filling machine

適應：制藥行業，食品行業，化妝品行業，電子行業紙盒立式自動成型包裝。

APPLICATION :

Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.

特點：

該機專為包裝紙盒尺寸多批量小的廠家獨立設計。2

成本低，占地面積小。適用于各種尺寸的盒子。該機是一種具有多功能的垂直型自動裝盒機，更換規格改變模具時間短。2

304不銹鋼外殼

先進的PLC控制系統結合5.7彩色觸摸屏控制面板，可以輕松地設置和改變包裝參數。2

FEATURES:

2 It is specially design to pack small quantities multi size box.

2 With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.

2 304 stainless steel case

2 Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel , can easily set and change the packing parameters.

選配功能：

 自動加說明書，熱熔膠噴膠封盒，碳帶日期批號打印

 OPTION :

l   Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code

包裝工序：

Packing Process:

1、把紙盒吸到星輪。

Push

2、折疊紙盒下小舌。

Fold box lower small flap.

3、折下蓋。

Press both lower big flaps.

4、插入下大舌

Flatten both big flaps.

5產品裝入紙盒。

Product into

6折疊紙盒上小舌。

7折上蓋。

Press both upper  big flaps.

8插入上大舌

9成型產品推出。

Product push out.

主要性能技術參數：

SPECIFICATION :
